Solar Systems |
|
|

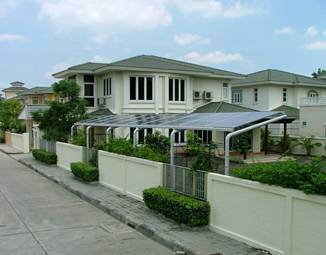

Solar Systems ( Thailand ) |
3.5kw |
|
3.5kw
|
|
New CIGS Type |
|
.......................... ............................................................................................ |

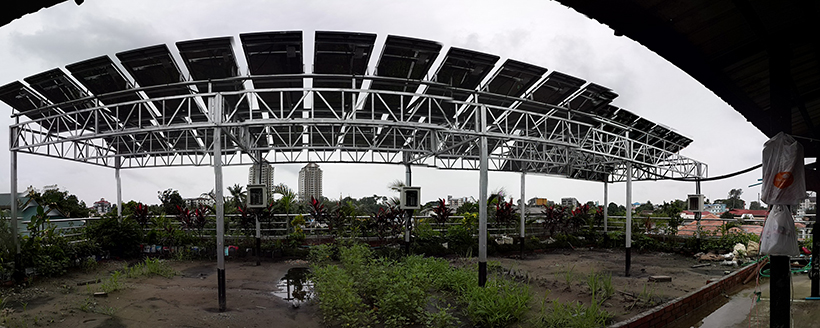

Solar Systems ( Myanmar ) |
New CIGS Type:5.220kw |
|
.......................... ............................................................................................ |
|
|
tsmc solar CIGS |
HIGH-EFFICIENCY CIGS SOLAR MODULE
|
■ CIGS Module (PV Panel)
|
A new technology of semiconductor materials are used to make thin-film modulescompounds made of Copper, Indium, Gallium and Selenium (CIGS).
|
|
■ CIGS Module (PV Panel)'s Advantages |
|

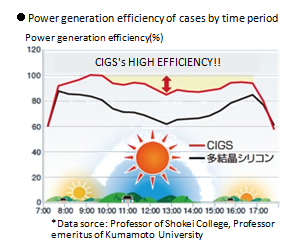

1. Performs Better in Low-light Condition & Superior Shading Tolerance |
|
• The wavelength of the light from the sun changes by sunny or cloudy. The wavelength is shorter when cloudy, but CIGS actually operate at higher than 100% relative efficiency.
• Even less shading will cause mass reduction to convertional Silicon panel, while CIGS loss proportional to shaded area.
|
|
2. Less Temperature-rated loss |
|
• Materials used on Solar Module's film affects the temerature&environment rated loss.
• CIGS has less temperature-rated loss, even on roof which is the hotest part of a building.
|
|
Others |
• Aesthetically appealing all-black appearance.
• Framed module designed for easy use with industrystandard mounting systems.
• Etched, unchangeable serial numbers for full traceability of each module.
|
|
■ Quality and Safety
|
|
• UL, IEC and MCS certified
• Rated for snow and wind loads up to 2,400 Pa.
• Free of potential induced degradation (PID) effects.
• Manufactured at an ISO 9001: 2008, ISO 14001 and OHSAS 18001 certified facility. |
■ Warranty
|
90% at 10 years and 80% at 25 years of minimum rated power output. |
|
|
|
|
|
Solar Power Meter(Irradiance Meter)
|
|
|
Model: SPM-1116SD |
|
|
3 functions :
- Solar power, Power integration, Transmission.
- Wide spectral range.
- Excellent long term stability.
- Select either W/m^2 or Btu / (ft^2xh) power units.
- Cosine corrected. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|

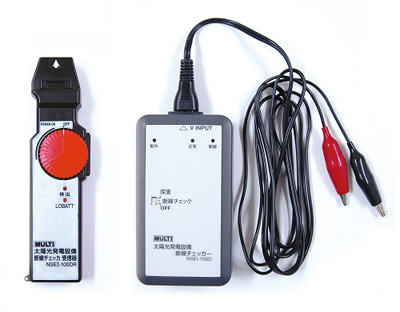

NSEI-100D (Disconnection Detector for PV)
|
|
|
|
|
Disconnection detector for DC current circuit of photovoltaic systems
FEATURES
This device can detect the disconnected & broken point of DC current lines between PV panels and power conditioners in PV systems, without cutting power off and without climbing the roof where PV modules are located.
Furthermore, this model can find out the disconnecting point by applying the attached detector to the specific PV module.
CHECKER
SPECIFICATIONS |
Applicable Voltage: DC 0~440V±10%
Applying Frequency: 5KHz |
DETECTOR
SPECIFICATIONS |
Detective of Magnetic Flux by Signal Current
Detection Sensitivity: 4 steps by manual
Continuity: LED lightening and intermittent beep by buzzer |
|
|
