製品案内

 LED PANEL LIGHT

 LED PANEL LIGHT

LED_Panel_02

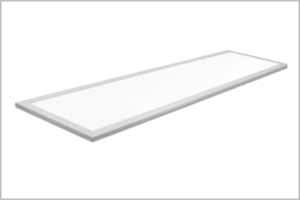

LED_Panel_01

 Product Appearance
    Design with excellent practicality and can be adapted to the various places like:
Office ceiling, shop, showroom, super market

   Features


• Long life, up to 40,000 + hours
• Light viewing angle of over 120°
• Electricity consumption reduced 60%
• Easy installation and low maintenance fee
• Green product. Free of mercury and hazardous materials


Specification

Model BES-PL6060 BES-PL30120
Power consumption (W/AC) 45W ± 5%
Input Voltage(V) AC100V - 240V(NON-DIM) / AC 200V-240V(DIM)
50-60HZ(NON-DIM) / 50HZ (DIM)
Luminous Flux(lm) >2562lm (6000K) >2642lm (6000K)
( high 2m. 296lx.) ( high 2m. 305lx.)
Color Temperature(K) 2700/5500K
Dimmable available available
Size・Weight 595 mm (L) x 595 mm (W) x 11mm (H) 1195 mm (L) x 295 mm (W) x 11mm (H)
Fixture Material PC/AL
Life Span(hr) Deacay<70% 40,000
Warranty 2 Y
Work condition Temperature 5°C~35°C
Humidity Below 85%
* Do not use at high humidity or wet place. *
